ANUBATRICE bit con corpo in acciaio treatmen calore per fare fori passanti

Dettagli:

Luogo di origine:	Hangzhou
Marca:	Tideway
Certificazione:	ISO9001 EN847-1
Numero di modello:	LC17190

Termini di pagamento e spedizione:

Quantità di ordine minimo:	100 CHICCI PER OGNI DIMENSIONE
Prezzo:	USD1.3-USD3.88
Imballaggi particolari:	Scatola di plastica
Tempi di consegna:	35 giorni lavorativi
Termini di pagamento:	T/T o L/C a vista
Capacità di alimentazione:	5000pcs al giorno

Contatto

Descrizione di prodotto dettagliata

Evidenziare:

tagliente del CTT

pezzo di carotiere

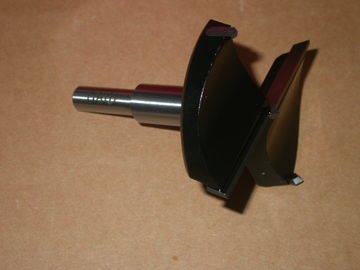

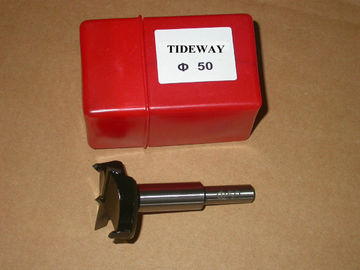

Munisca il pezzo di cardini noioso con il corpo di acciaio di treatmen del calore per la fabbricazione attraverso i fori

Taglienti fatti delle punte del acciaio al carbonio e del carburo. Corpo di acciaio con il trattamento termico. per assicurarsi forte abbastanza e non rotto. Superficie dipinta con colore rosso (LH) o nero (di RH).

Abbiamo punto del chiodino a testa laterale, punto di V, per le cerniere e svasiamo i tipi differenti.

stinco modulare di 10mm con il piano. T.C.T fornisce di punta con punto centrale e la vite regolabile M5*10.

Applicazioni:

I pezzi fanno attraverso i fori o fori ciechi o fori sulle cerniere o sui carri armati sulle alesatrici e sulla linea punto a punto macchine. Per i pannelli della melammina e crudi, MDF, pannelli a più strati

Specifiche:

Numero del pezzo.	D	d1	d2	L
LC171901014	14,0	8,0	10,0	85,0
LC171901015	15,0	8,0	10,0	85,0
LC171901016	16,0	8,0	10,0	85,0
LC171901018	18,0	8,0	10,0	85,0
LC171901019	19,0	8,0	10,0	85,0
LC171901020	20,0	8,0	10,0	85,0
LC171901022	22,0	8,0	10,0	85,0
LC171901023	23,0	8,0	10,0	85,0
LC171901024	24,0	8,0	10,0	85,0
LC171901025	25,0	10,0	12,0	85,0
LC171901026	26,0	10,0	12,0	85,0
LC171901027	27,0	10,0	12,0	85,0
LC171901028	28,0	10,0	12,0	85,0
LC171901029	29,0	10,0	12,0	85,0
LC171902030	30,0	10,0	12,0	87,5
LC171902032	32,0	10,0	12,0	87,5
LC171902034	34,0	10,0	12,0	87,5
LC171902035	35,0	10,0	12,0	87,5
LC171902036	36,0	10,0	12,0	87,5
LC171902038	38,0	10,0	15,0	87,5
LC171902040	40,0	10,0	15,0	87,5
LC171902042	42,0	10,0	15,0	87,5
LC171902043	43,0	10,0	15,0	87,5
LC171902044	44,0	10,0	15,0	87,5
LC171902045	45,0	10,0	15,0	87,5
LC171902046	46,0	10,0	15,0	87,5
LC171902048	48,0	10,0	15,0	87,5
LC171902050	50,0	10,0	15,0	87,5
LC171902052	52,0	10,0	15,0	87,5
LC171902053	53,0	10,0	15,0	87,5
LC171902054	54,0	10,0	15,0	87,5
LC171902055	55,0	10,0	15,0	87,5
LC171902056	56,0	10,0	15,0	87,5
LC171902058	58,0	10,0	15,0	87,5
LC171902060	60,0	10,0	15,0	87,5
LC171902063	63,0	10,0	15,0	87,5
LC171902065	65,0	10,0	15,0	87,5
LC171902070	70,0	10,0	15,0	87,5
LC171902075	75,0	10,0	15,0	87,5
LC171902080	80,0	10,0	15,0	87,5
